Schneider Electric IID Series Residual Current Device, 40 A, 4-Pole, 30 mA, Type A, 1500 A 415 V ac
- RS Stock No.:
- 776-7466
- Distrelec Article No.:
- 302-17-074
- Mfr. Part No.:
- A9Z21440
- Brand:
- Schneider Electric

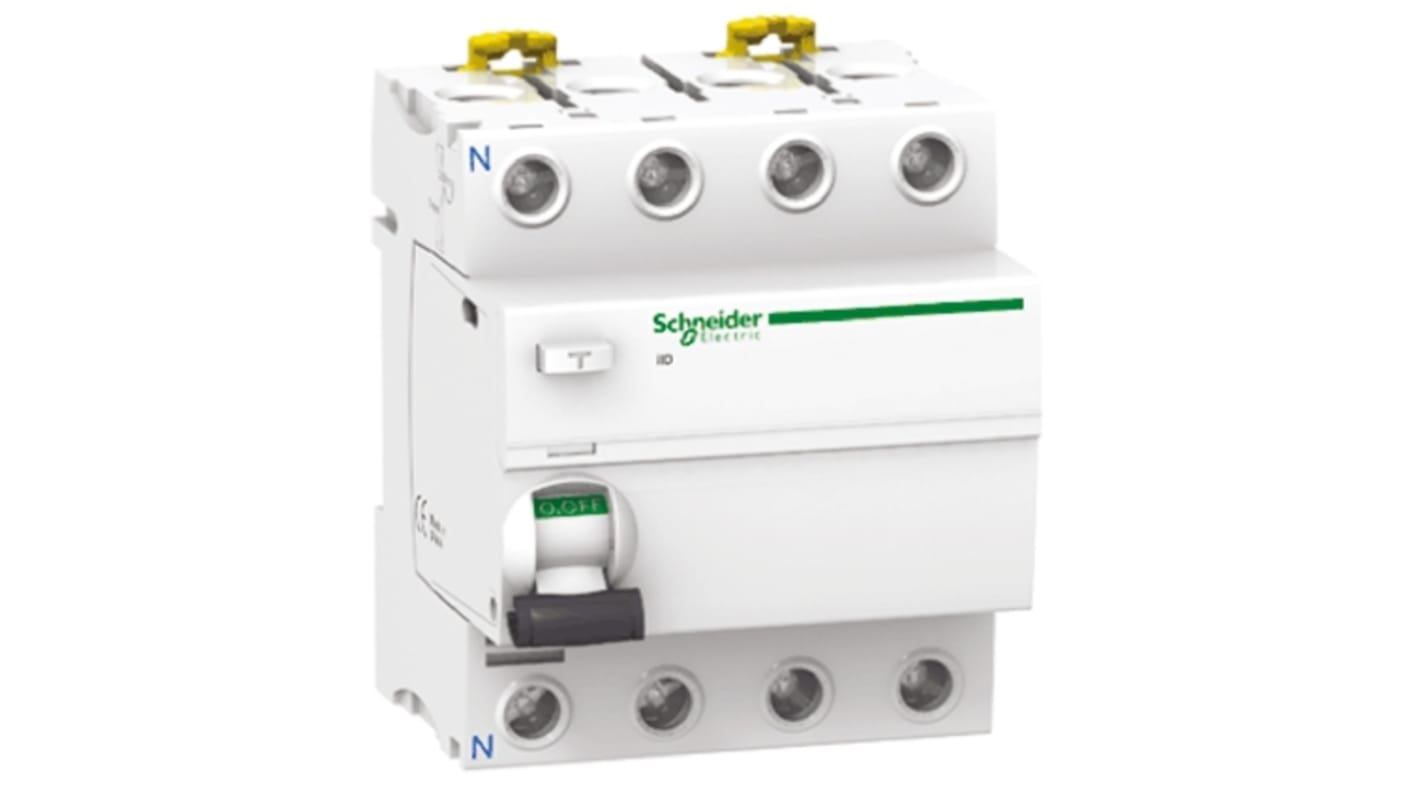

Image representative of range
Subtotal (1 unit)*
Kr. 1 467,29
(exc. VAT)
Kr. 1 834,11
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | Kr. 1 467,29 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 776-7466
- Distrelec Article No.:
- 302-17-074
- Mfr. Part No.:
- A9Z21440
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Residual Current Device | |
| Current Rating | 40 A | |
| Number of Poles | 4 | |
| Range | Acti9 | |
| Series | IID | |
| Trip Sensitivity | 30mA | |
| Mount Type | DIN Rail | |
| Tripping Characteristics | Type A | |
| Standards/Approvals | EN/IEC 61008-1, REACH, RoHS | |
| Depth | 73mm | |
| Height | 91mm | |
| Width | 72 mm | |
| Breaking Capacity | 1500A | |
| Better World Product | Yes | |
| Earth Leakage Protection Type | Type A | |
| Break Time | Instantaneous | |
| Application | Residential | |
| Rated AC Voltage | 415 V ac | |
| Reset Actuator Type | Toggle Switch | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Residual Current Device | ||
Current Rating 40 A | ||
Number of Poles 4 | ||
Range Acti9 | ||
Series IID | ||
Trip Sensitivity 30mA | ||
Mount Type DIN Rail | ||
Tripping Characteristics Type A | ||
Standards/Approvals EN/IEC 61008-1, REACH, RoHS | ||
Depth 73mm | ||
Height 91mm | ||
Width 72 mm | ||
Breaking Capacity 1500A | ||
Better World Product Yes | ||
Earth Leakage Protection Type Type A | ||
Break Time Instantaneous | ||
Application Residential | ||
Rated AC Voltage 415 V ac | ||
Reset Actuator Type Toggle Switch | ||
- COO (Country of Origin):
- ES
RCCB Acti9 iID
The Acti 9 iID DIN rail RCCBs, are fully coordinated with the iC60 MCBs to warranty an absolute people and equipment protection against electrocution, risk of fire and improved continuity of service.
iID residual current circuit breakers AC Type provide:
Protection of persons against electric shock by direct contact (≦ 30 mA).
Protection of persons against electric shock by indirect contact (≧ 100 mA).
Protection of installations against the risk of fire (300 mA or 500 mA).
iID residual current circuit breakers Asi Type provide:
Protection of persons against electric shock by direct contact (≦ 30 mA).
Protection of persons against electric shock by indirect contact (≧ 300 mA).
Protection of installations against the risk of fire (300 mA or 500 mA).
Increased immunity from electrical interference and polluted or corrosive environments.
