Abundant Variations of Attenuators: Attenuation amounts are available in abundant variations from 0 to 4 dB in 0.5 dB steps, from 4 to 10 dB in 1 dB steps, and in 12, 13, 14, 15, 20, 26 and 30 dB so that levels can be finely adjusted. SMA Type: The coupling portions are available in all types of plug and jack combinations and stainless steel is used for the external cladding to form a small and durable structure. High Degree of Matching and High Reliability: The design of the attenuation element uses a distributed constant circuit and metal film resistor. A high degree of matching is achieved as indicated in the V.S.W.R. of the appended tables. Furthermore, these attenuators show stable characteristics for environments of varying temperature, humidity, and gases.

Select all	Attribute	Value
	Brand	Hirose
	Attenuation	6dB
	Body Orientation	Straight
	Impedance	50Ω
	Operating Frequency	18GHz
	Contact Plating	Gold
	Contact Material	Beryllium Copper
	Connector Type	SMA
	Gender A	Male
	Gender B	Female

	Select all
	Brand Hirose
	Attenuation 6dB
	Body Orientation Straight
	Impedance 50Ω
	Operating Frequency 18GHz
	Contact Plating Gold
	Contact Material Beryllium Copper
	Connector Type SMA
	Gender A Male
	Gender B Female

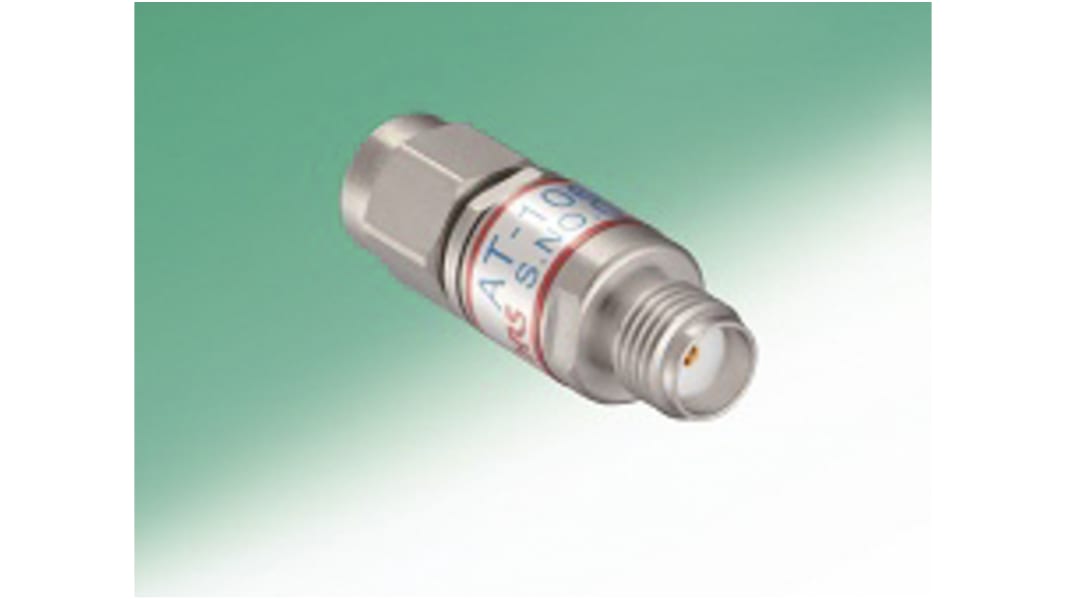

Hirose 50Ω RF Attenuator Straight SMA Connector 6dB, Operating Frequency 18GHz
