Huber+Suhner 85177202 RF AttenuatorStraight 30 dBMaleFemale
- RS Stock No.:
- 274-2028
- Mfr. Part No.:
- 85177202
- Brand:
- Huber+Suhner
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
Kr. 6 292,80
(exc. VAT)
Kr. 7 866,00
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- Plus 30 unit(s) shipping from 27 July 2026
- Plus 4 unit(s) shipping from 27 July 2026
- Plus 4 unit(s) shipping from 26 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 1 | Kr. 6 292,80 |
| 2 - 2 | Kr. 6 041,01 |
| 3 - 4 | Kr. 5 808,89 |
| 5 - 9 | Kr. 5 593,59 |
| 10 + | Kr. 5 393,85 |
*price indicative
- RS Stock No.:
- 274-2028
- Mfr. Part No.:
- 85177202
- Brand:
- Huber+Suhner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Huber+Suhner | |
| Interface Type | Type N | |
| Product Type | RF Attenuator | |
| Impedance | 50Ω | |
| Maximum Frequency | 6GHz | |
| Body Plating | Metal | |
| Contact Plating | Gold Plating | |
| Contact Material | Beryllium Copper Alloy, Brass | |
| Low Power | Yes | |
| Orientation | Straight | |
| Connector Type | Coaxial | |
| Minimum Operating Temperature | -55°C | |
| Maximum Attenuation | 30dB | |
| Connector Gender A | Male | |
| Maximum Operating Temperature | 125°C | |
| Connector Gender B | Female | |
| Standards/Approvals | No | |
| Series | 5930_N-50-025/13-_N | |
| Select all | ||
|---|---|---|
Brand Huber+Suhner | ||
Interface Type Type N | ||
Product Type RF Attenuator | ||
Impedance 50Ω | ||
Maximum Frequency 6GHz | ||
Body Plating Metal | ||
Contact Plating Gold Plating | ||
Contact Material Beryllium Copper Alloy, Brass | ||
Low Power Yes | ||
Orientation Straight | ||
Connector Type Coaxial | ||
Minimum Operating Temperature -55°C | ||
Maximum Attenuation 30dB | ||
Connector Gender A Male | ||
Maximum Operating Temperature 125°C | ||
Connector Gender B Female | ||
Standards/Approvals No | ||
Series 5930_N-50-025/13-_N | ||
- COO (Country of Origin):
- CN

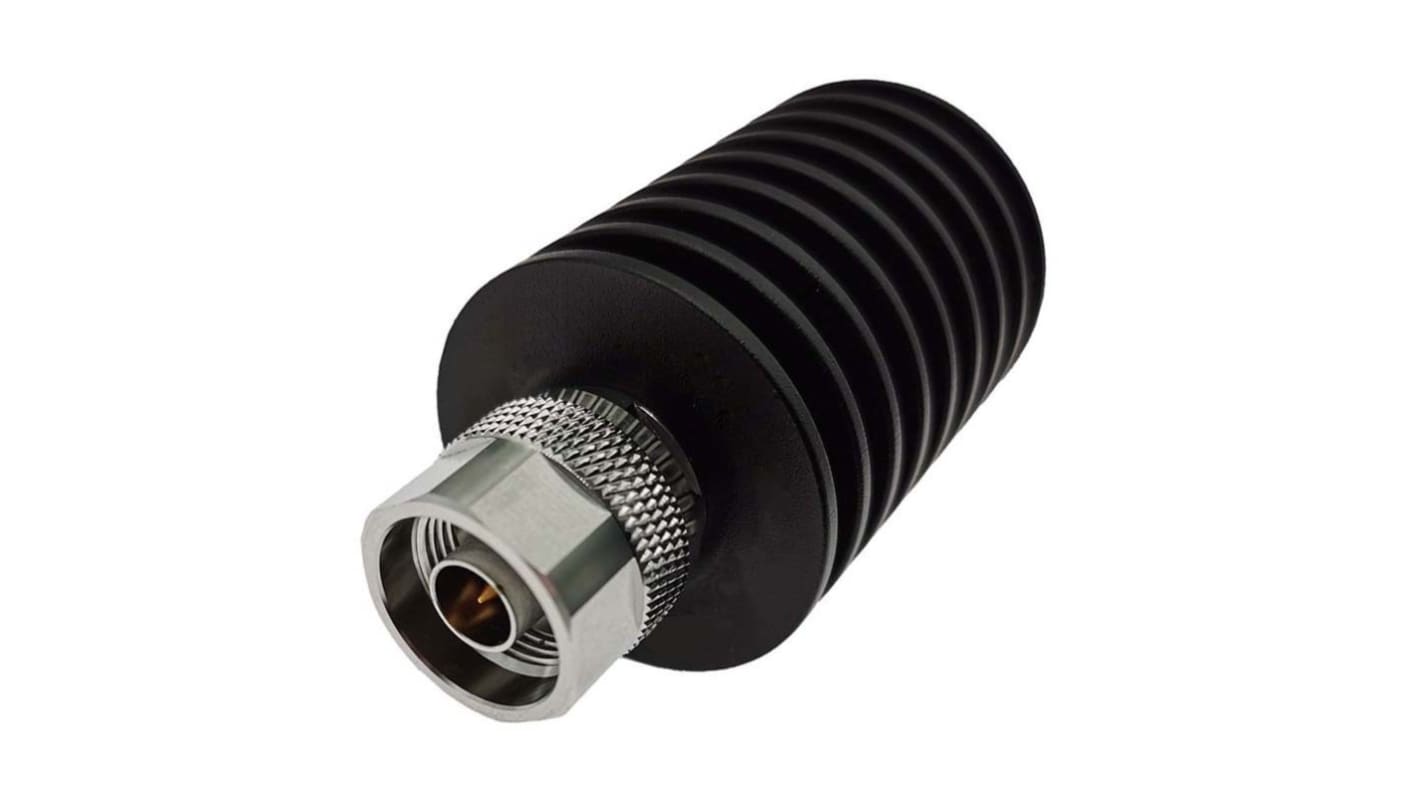

Huber+Suhner RF Attenuator, 30dB Maximum Attenuation, 6GHz Maximum Frequency - 85177202
This RF attenuator reduces signal amplitude in 50Ω coaxial systems and is designed for use with N‑type interfaces up to 6 GHz. It provides a straight male‑to‑female connection in a robust aluminium, anodised body and is suited to low‑power signal control within electrical, electronic and automation setups. Operating across a wide temperature range, it supports stable attenuation for testing and measurement contexts.
Features and Benefits:
• 30 dB attenuation delivers predictable signal level reduction for diagnostics
• 50Ω impedance ensures system matching to minimise reflections
• Type N male to female Interface enables secure coaxial connectivity
• Gold‑plated beryllium copper contacts maintain low contact resistance
• Aluminium anodised body provides mechanical protection and corrosion resistance
• Operates from -55°C to 125°C for use in extreme thermal environments
• 50Ω impedance ensures system matching to minimise reflections
• Type N male to female Interface enables secure coaxial connectivity
• Gold‑plated beryllium copper contacts maintain low contact resistance
• Aluminium anodised body provides mechanical protection and corrosion resistance
• Operates from -55°C to 125°C for use in extreme thermal environments
Applications
• Suitable for insertion in test equipment signal chains for calibration
• Ideal for shielding sensitive receivers during system commissioning
• Used with RF generators to set precise output levels for measurements
• Can be used for attenuating signals in automation sensor networks
• Used for component‑level verification in electronic manufacturing test rigs
• Ideal for shielding sensitive receivers during system commissioning
• Used with RF generators to set precise output levels for measurements
• Can be used for attenuating signals in automation sensor networks
• Used for component‑level verification in electronic manufacturing test rigs
What connector orientation does it use for inline installation?
It has a straight configuration with a male connector on one end and a female on the other for inline mounting.
Which materials contribute to electrical contact performance?
Contacts combine beryllium copper alloy with gold plating to deliver reliable electrical contact and corrosion resistance under low‑power conditions.
What temperature extremes can it withstand during operation?
The unit is rated to function continuously between -55°C and 125°C without loss of specified attenuation characteristics.
What frequency span does it support for broadband applications?
It covers operation from DC up to 6 GHz, accommodating a wide range of RF test and measurement frequencies.
What construction detail aids mechanical durability in industrial environments?
The housing uses aluminium with an anodised finish to enhance surface hardness and protect against wear in demanding applications.
