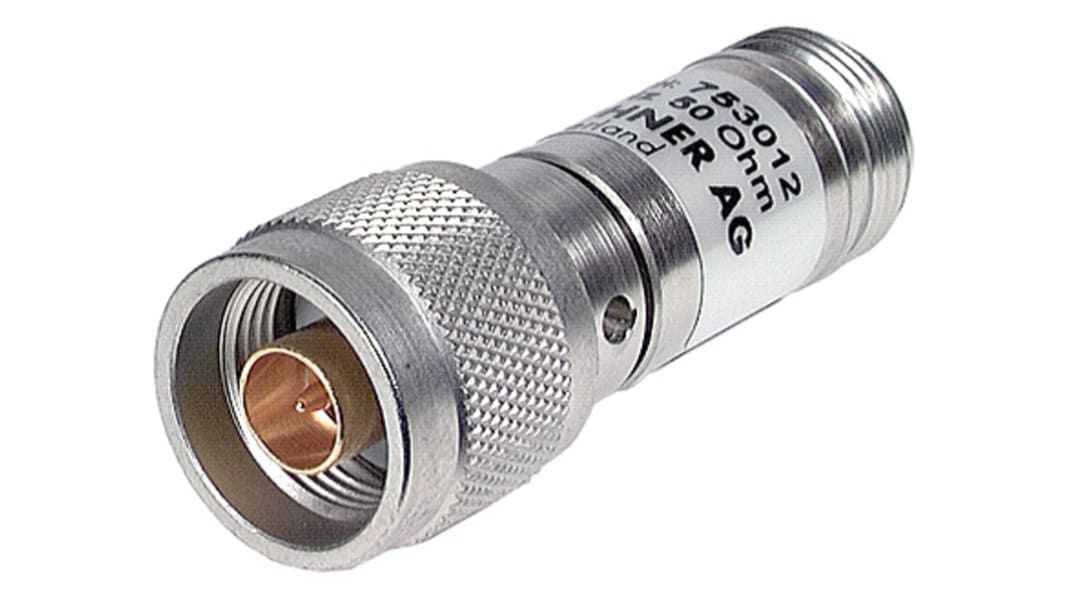

Huber+Suhner 6820.17.A RF AttenuatorStraight 0.8 dBMaleFemale
- RS Stock No.:
- 716-5097
- Distrelec Article No.:
- 302-47-142
- Mfr. Part No.:
- 6820.17.A
- Brand:
- Huber+Suhner
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
Kr. 2 301,61
(exc. VAT)
Kr. 2 877,01
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- 5 unit(s) ready to ship
- Plus 38 unit(s) shipping from 23 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | Kr. 2 301,61 |
| 15 - 49 | Kr. 2 071,56 |
| 50 - 99 | Kr. 2 011,72 |
| 100 - 249 | Kr. 1 954,07 |
| 250 + | Kr. 1 898,70 |
*price indicative
- RS Stock No.:
- 716-5097
- Distrelec Article No.:
- 302-47-142
- Mfr. Part No.:
- 6820.17.A
- Brand:
- Huber+Suhner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Huber+Suhner | |
| Interface Type | N Plug to N Socket | |
| Product Type | RF Attenuator | |
| Impedance | 50Ω | |
| Maximum Frequency | 12.4GHz | |
| Body Plating | Sucoplate | |
| Contact Plating | Gold | |
| Contact Material | Brass | |
| Low Power | Yes | |
| Connector Type | Type N | |
| Orientation | Straight | |
| Minimum Operating Temperature | -55°C | |
| Maximum Attenuation | 0.8dB | |
| Minimum Frequency | 4GHz | |
| Maximum Operating Temperature | 130°C | |
| Connector Gender A | Male | |
| Standards/Approvals | No | |
| Connector Gender B | Female | |
| Select all | ||
|---|---|---|
Brand Huber+Suhner | ||
Interface Type N Plug to N Socket | ||
Product Type RF Attenuator | ||
Impedance 50Ω | ||
Maximum Frequency 12.4GHz | ||
Body Plating Sucoplate | ||
Contact Plating Gold | ||
Contact Material Brass | ||
Low Power Yes | ||
Connector Type Type N | ||
Orientation Straight | ||
Minimum Operating Temperature -55°C | ||
Maximum Attenuation 0.8dB | ||
Minimum Frequency 4GHz | ||
Maximum Operating Temperature 130°C | ||
Connector Gender A Male | ||
Standards/Approvals No | ||
Connector Gender B Female | ||
- COO (Country of Origin):
- CH
Huber+Suhner RF Attenuator, 0.8dB Maximum Attenuation, 12.4GHz Maximum Frequency - 6820.17.A
This RF attenuator is a low-power inline device designed to reduce signal amplitude in 50Ω systems while preserving impedance match across a wide frequency range. It connects directly between coaxial lines using a straight Type N male to Type N female Interface with gold-plated contacts, enabling insertion into test, measurement and signal-chain setups where controlled attenuation is required.
Features and Benefits:
• Maximum attenuation 0.8 dB provides minimal signal reduction for calibration
• Operates up to 12.4 GHz to support high-frequency measurements
• Temperature range -55°C to 130°C maintains performance in harsh environments
• Brass contacts with gold plating reduce contact loss and corrosion
• Sucoplate body finish increases mechanical durability of the housing
• Operates up to 12.4 GHz to support high-frequency measurements
• Temperature range -55°C to 130°C maintains performance in harsh environments
• Brass contacts with gold plating reduce contact loss and corrosion
• Sucoplate body finish increases mechanical durability of the housing
Applications
• Suitable for RF test benches and signal conditioning in laboratories
• Ideal for attenuation in communication component verification
• Used with coaxial measurement equipment requiring 50 Ω matching
• Can be used for amplitude control in automation and electronics rigs
• Ideal for attenuation in communication component verification
• Used with coaxial measurement equipment requiring 50 Ω matching
• Can be used for amplitude control in automation and electronics rigs
What connector types are provided for inline connections?
The unit uses a Type N plug to Type N socket Interface allowing direct male-to-female coupling in 50 Ω coaxial lines.
How does the contact construction affect electrical performance?
Brass contacts with gold plating lower contact resistance and improve conductivity, reducing insertion loss at the connector interface.
What environmental extremes can it tolerate during operation?
It is specified to function between -55°C and 130°C, suitable for thermal cycling and elevated-temperature test conditions.
Is this suited for high-power transmission applications?
It is designated as a low-power attenuator, therefore it is not intended for high-power RF transmission duties.
