Martindale, Model BZ101 Socket Tester 13A 230 V CAT IV

RS Stock No.:: 716-1082
Mfr. Part No.:: RSBZ101
Brand:: Martindale

Martindale, Model BZ101 Socket Tester 13A 230 V CAT IV

Subtotal (1 unit)*

Kr.1 034 51

(exc. VAT)

Kr.1 293 14

(inc. VAT)

FREE delivery for online orders over 500,00 kr

In Stock

146 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 1 034,51

*price indicative

RS Stock No.:: 716-1082
Mfr. Part No.:: RSBZ101
Brand:: Martindale

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Martindale
	Product Type	Socket Tester
	Voltage	230 V
	Current	13A
	Audible Alarm	Yes
	Number of Pins	3
	Wiring Check	Yes
	Power Source	Mains
	Minimum Operating Temperature	-10°C
	Model Number	BZ101
	Maximum Operating Temperature	40°C
	Width	65 mm
	Length	65mm
	Standards/Approvals	CE, BS EN 61010, CAT II 300V
	Height	47mm
	Plug Type	3-Pin (Global)
	Safety Category Level	CAT IV
	Safety Category Voltage	300V

	Select all
	Brand Martindale
	Product Type Socket Tester
	Voltage 230 V
	Current 13A
	Audible Alarm Yes
	Number of Pins 3
	Wiring Check Yes
	Power Source Mains
	Minimum Operating Temperature -10°C
	Model Number BZ101
	Maximum Operating Temperature 40°C
	Width 65 mm
	Length 65mm
	Standards/Approvals CE, BS EN 61010, CAT II 300V
	Height 47mm
	Plug Type 3-Pin (Global)
	Safety Category Level CAT IV
	Safety Category Voltage 300V

RoHS Status: Exempted

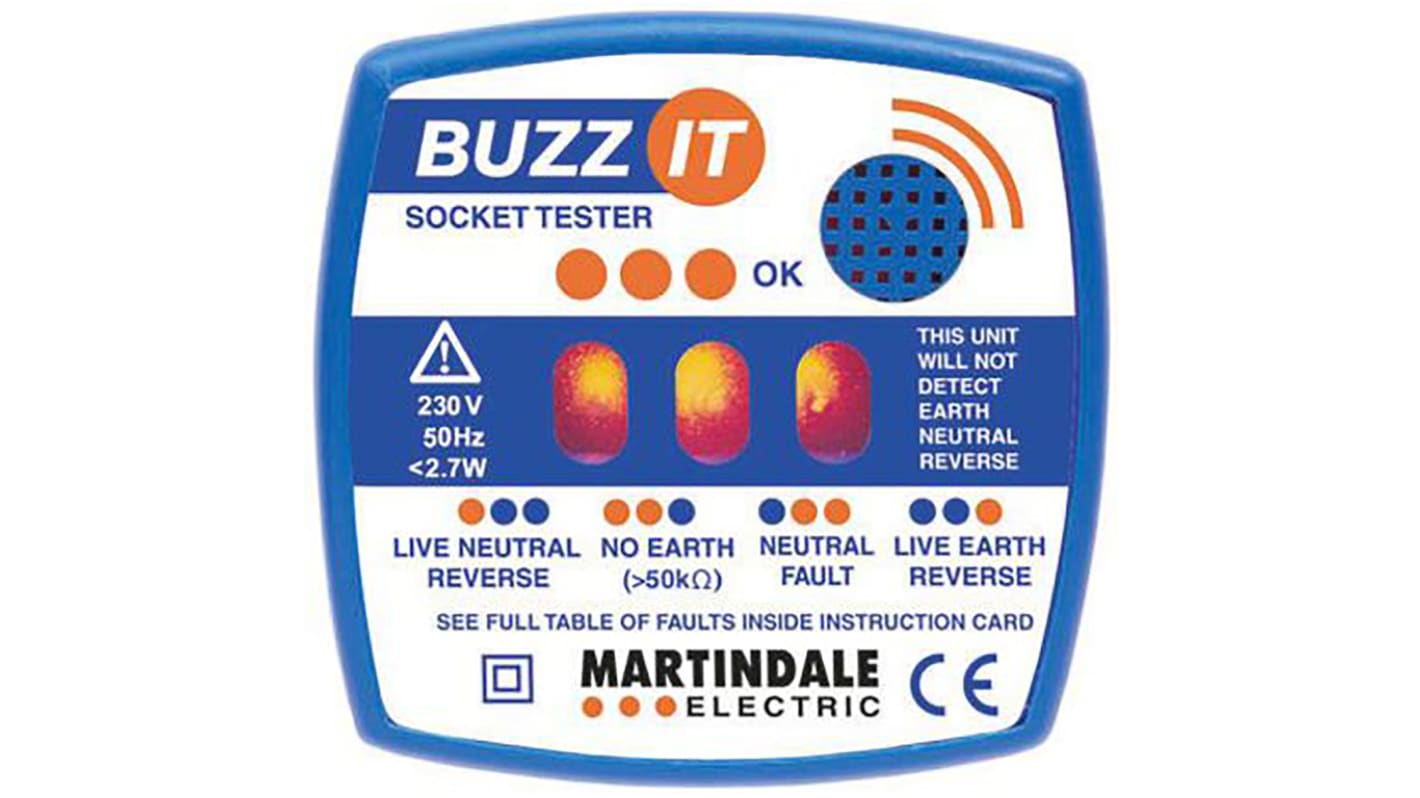

Martindale Socket Testers

The Martindale socket tester is a state-of-the-art device with a current rating of 13AC and detecting voltage rating of 350VAC. It is a fast and easy way to test sockets. When plugged into a live socket, three neons light up indicating correct wiring, whilst one or more neon failing to light indicates wiring errors.

Caution:

This product is not suitable for testing sockets that are supplied via an isolating transformer.

Features and Benefits

Type G-British 3-pin plug

Three bright LED's show wiring status

Frequency range: 50Hz

Fast and safe indication of socket wiring

Incorporates audible indication of correct wiring

Fuse and trip finding, located when buzzer stops

Power supply: from mains

Open earth if earth resistance>50kohm nominal at 230V AC

Open neutral if Neutral resistance>50kohm nominal at 230V AC

Earth leakage <5mA on a correctly wired socket

Flame retardant ABS casing

Operating temperature ranges between -10°C and 40°C

Applications

Electrical systems

Commercial

Residential

Certifications

BSEN61010

CAT II 300V
