Phoenix Contact, PT 2X2+F-BE Surge Suppressor Unit 40 V dc Maximum Voltage Rating Surge Protector
- RS Stock No.:
- 504-3541
- Mfr. Part No.:
- 2839224
- Brand:
- Phoenix Contact
8 In stock for dispatch same day
Not available for next day delivery
Added
Price Each
Kr. 1 096,56
(exc. VAT)
Kr. 1 370,70
(inc. VAT)
| Units | Per unit |
| 1 - 9 | Kr. 1 096,56 |
| 10 - 19 | Kr. 1 053,78 |
| 20 - 24 | Kr. 1 008,79 |
| 25 - 49 | Kr. 988,01 |
| 50 + | Kr. 932,13 |
- RS Stock No.:
- 504-3541
- Mfr. Part No.:
- 2839224
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
RS 422 and RS 485 series DATA-PLUGTRAB® data link protection
DATA-PLUGTRAB is a two-part protection module (plug and base) for industrial bus systems and data signal networks that use a 3- or 4-core technique.

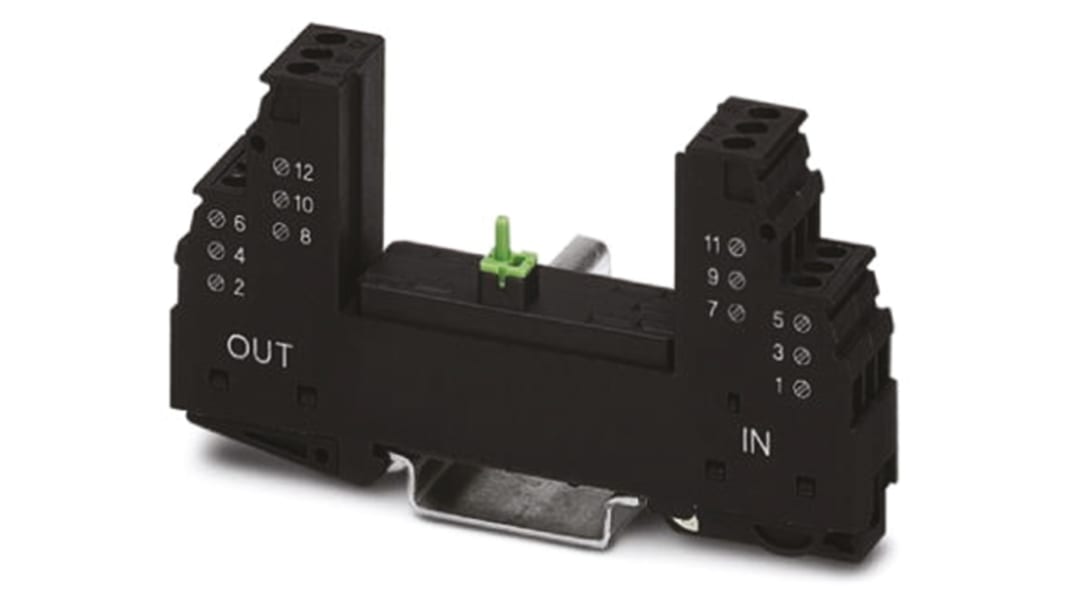

The bases' metal grounding foot on the PT 2x2 BE ensures a quick mount on the rail and, consequently, with the nearby ground potential.
Its compact design is only 17.5 mm wide, and it fits onto a symmetric rail.
Pluggable design allows communication to be immediately re-established after unplugging a device that has reached the end of its service life.
The bases' metal grounding foot on the PT 2x2 BE ensures a quick mount on the rail and, consequently, with the nearby ground potential.
Its compact design is only 17.5 mm wide, and it fits onto a symmetric rail.
Pluggable design allows communication to be immediately re-established after unplugging a device that has reached the end of its service life.
Specifications
Attribute | Value |
|---|---|
| Suppressor Type | Surge Protector |
| Maximum Voltage Rating | 40 V dc |
| Mounting Type | DIN Rail |
| Series | PT 2X2+F-BE |
| Length | 89.8mm |
| Depth | 17.7mm |
| Height | 52mm |
| Dimensions | 89.8 x 17.7 x 52mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
