RS PRO Current Transformer 100 A 30 x 10 mm Bore
- RS Stock No.:
- 171-8765
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
Kr. 119,72
(exc. VAT)
Kr. 149,65
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- 197 unit(s) ready to ship
- Plus 70 unit(s) ready to ship from another location
- Plus 112 unit(s) shipping from 10 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | Kr. 119,72 |
| 5 - 9 | Kr. 114,86 |
| 10 - 24 | Kr. 110,17 |
| 25 - 49 | Kr. 105,36 |
| 50 + | Kr. 100,56 |
*price indicative
- RS Stock No.:
- 171-8765
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Current Transformer | |
| Secondary Current | 5 A | |
| Terminal Type | Wire | |
| Minimum Operating Temperature | -5°C | |
| Primary Current | 100A | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | IEC 61010-2, UL94V-0, IEC 60044-1, IEC 61869-1 | |
| Depth | 31mm | |
| Width | 50 mm | |
| Maximum Operating Frequency | 60Hz | |
| Mount Type | Wall, Busbar, Cable | |
| Minimum Operating Frequency | 50Hz | |
| Bore Size | 30 x 10 mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Current Transformer | ||
Secondary Current 5 A | ||
Terminal Type Wire | ||
Minimum Operating Temperature -5°C | ||
Primary Current 100A | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals IEC 61010-2, UL94V-0, IEC 60044-1, IEC 61869-1 | ||
Depth 31mm | ||
Width 50 mm | ||
Maximum Operating Frequency 60Hz | ||
Mount Type Wall, Busbar, Cable | ||
Minimum Operating Frequency 50Hz | ||
Bore Size 30 x 10 mm | ||
- COO (Country of Origin):
- IN

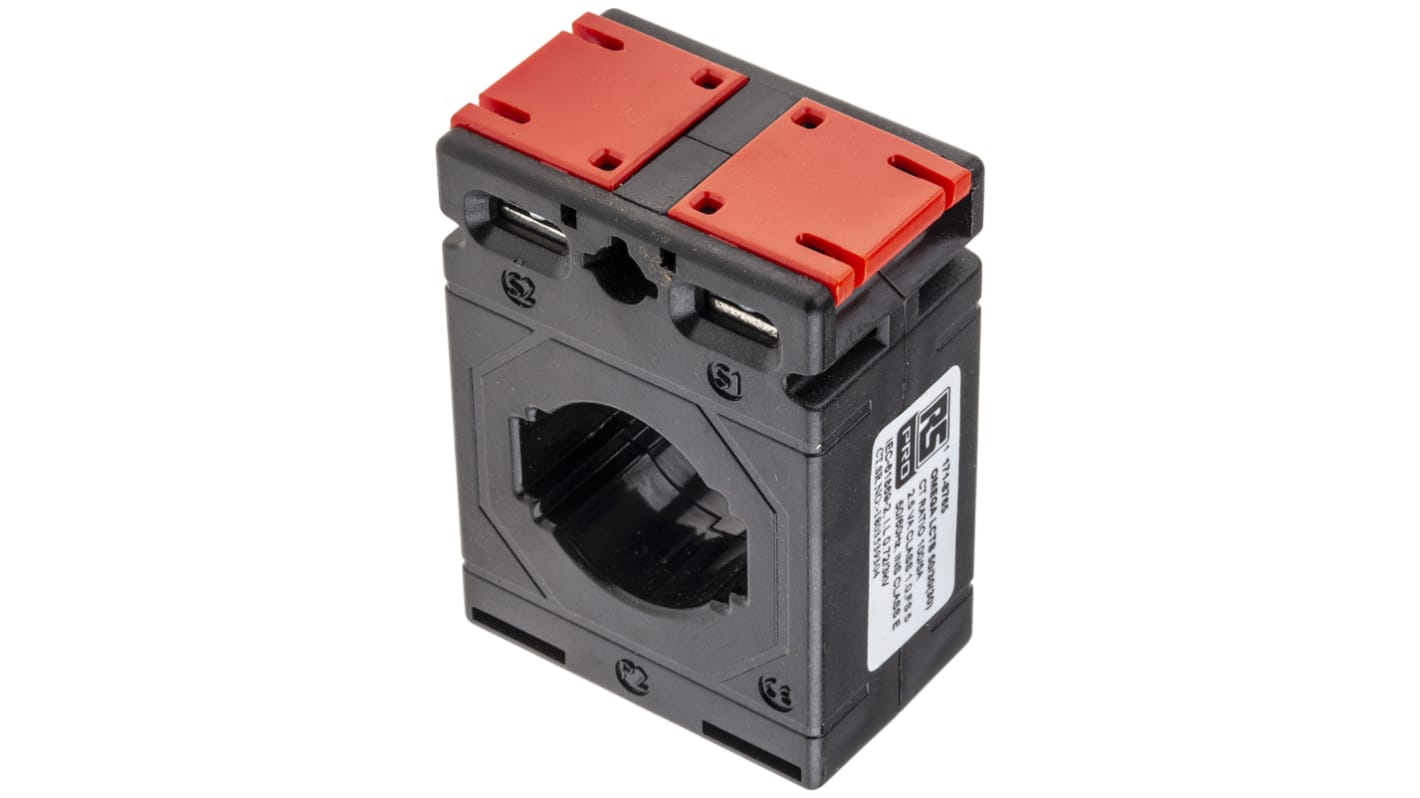

RS PRO Square Current Transformer (100:5A)
A reliable and tough current transformer (CT) with a current ratio of 100:5A. Highly accurate with a class 1 rating and designed to be base mounted.
A square type transformer with sealable terminal covers and encapsulated with Polycarbonate rated to UL94V-0 dictating that in the event of a fire the flammable parts of the transformer will not burn for more than 10 secs protecting equipment and premises.
A reliable and accurate CT current transformer suitable for harsh industrial environments and applications.
Current transformer (CT)
Square type
Current ratio of 100:5A
Class 1 accuracy
Base/ Surface mounted
Wire sealable terminal covers
IP20 rated
Altitude up to 2000 m
Operating temperature of -5°C to + 55°C
UL94V-0 fire rating
Dimensions of 70 x 50 x 31mm (bore size of 30 x 10mm)
Standards and Approvals: IEC 60044-1, IEC 61869-1, IEC 61010 - 2
