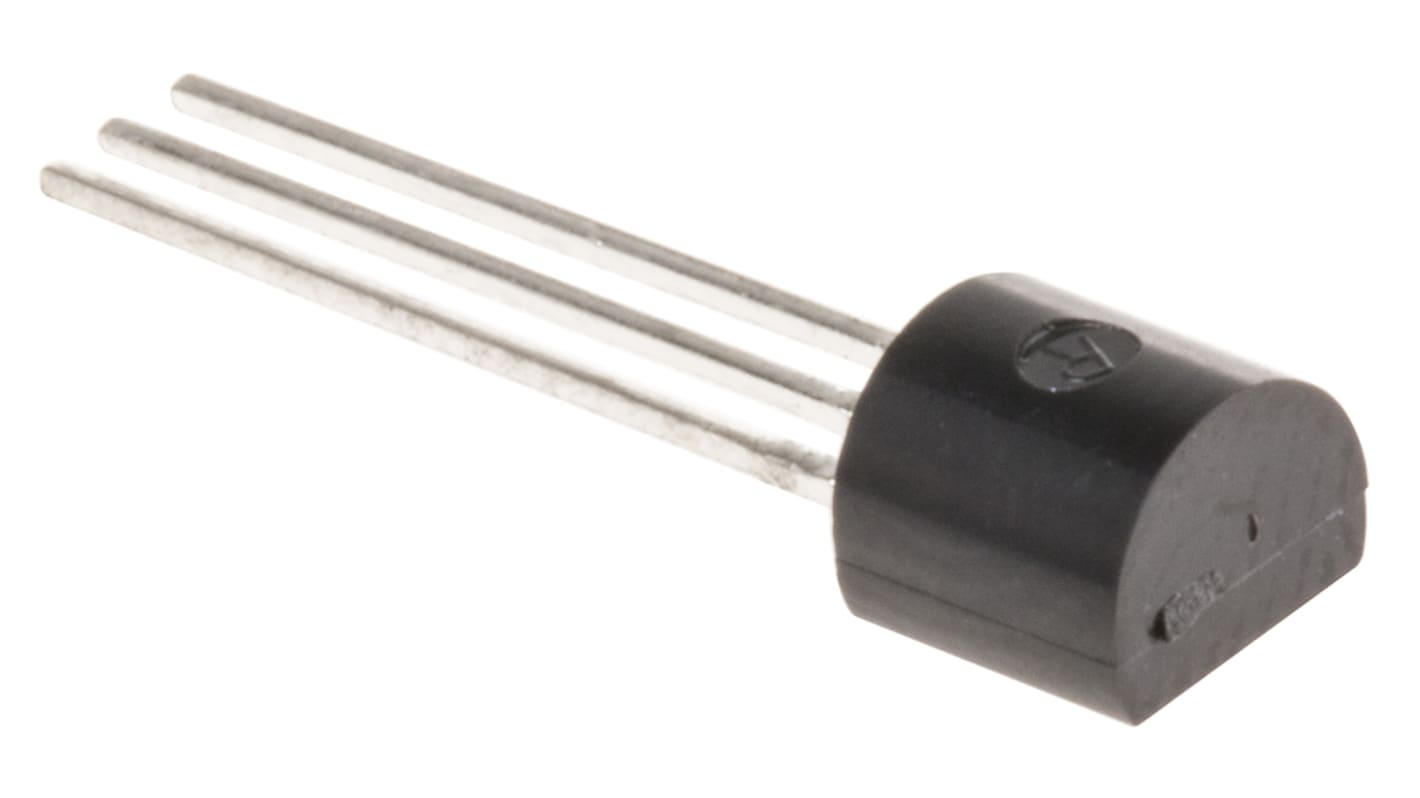

onsemi J112 N-Channel JFET, Idss min. 5mA, 3-Pin TO-92

Name: onsemi J112 N-Channel JFET, Idss min. 5mA, 3-Pin TO-92
Brand: onsemi
SKU: 806-1757P
Price: 3.58 NOK
Availability: InStock

Bulk discount available

Subtotal 500 units (supplied on a reel)*

Kr.1 433 00

(exc. VAT)

Kr.1 791 00

(inc. VAT)

In Stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
500 +	Kr. 2,866

*price indicative

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	onsemi
	Channel Type	N
	Idss Drain-Source Cut-off Current	min. 5mA
	Maximum Gate Source Voltage	-35 V
	Maximum Drain Gate Voltage	35V
	Configuration	Single
	Transistor Configuration	Single
	Maximum Drain Source Resistance	50 Ω
	Mounting Type	Through Hole
	Package Type	TO-92
	Pin Count	3
	Drain Gate On-Capacitance	28pF
	Source Gate On-Capacitance	28pF
	Dimensions	5.2 x 4.19 x 5.33mm
	Width	4.19mm
	Height	5.33mm
	Length	5.2mm
	Minimum Operating Temperature	-55 °C
	Maximum Operating Temperature	+150 °C

	Select all
	Brand onsemi
	Channel Type N
	Idss Drain-Source Cut-off Current min. 5mA
	Maximum Gate Source Voltage -35 V
	Maximum Drain Gate Voltage 35V
	Configuration Single
	Transistor Configuration Single
	Maximum Drain Source Resistance 50 Ω
	Mounting Type Through Hole
	Package Type TO-92
	Pin Count 3
	Drain Gate On-Capacitance 28pF
	Source Gate On-Capacitance 28pF
	Dimensions 5.2 x 4.19 x 5.33mm
	Width 4.19mm
	Height 5.33mm
	Length 5.2mm
	Minimum Operating Temperature -55 °C
	Maximum Operating Temperature +150 °C
