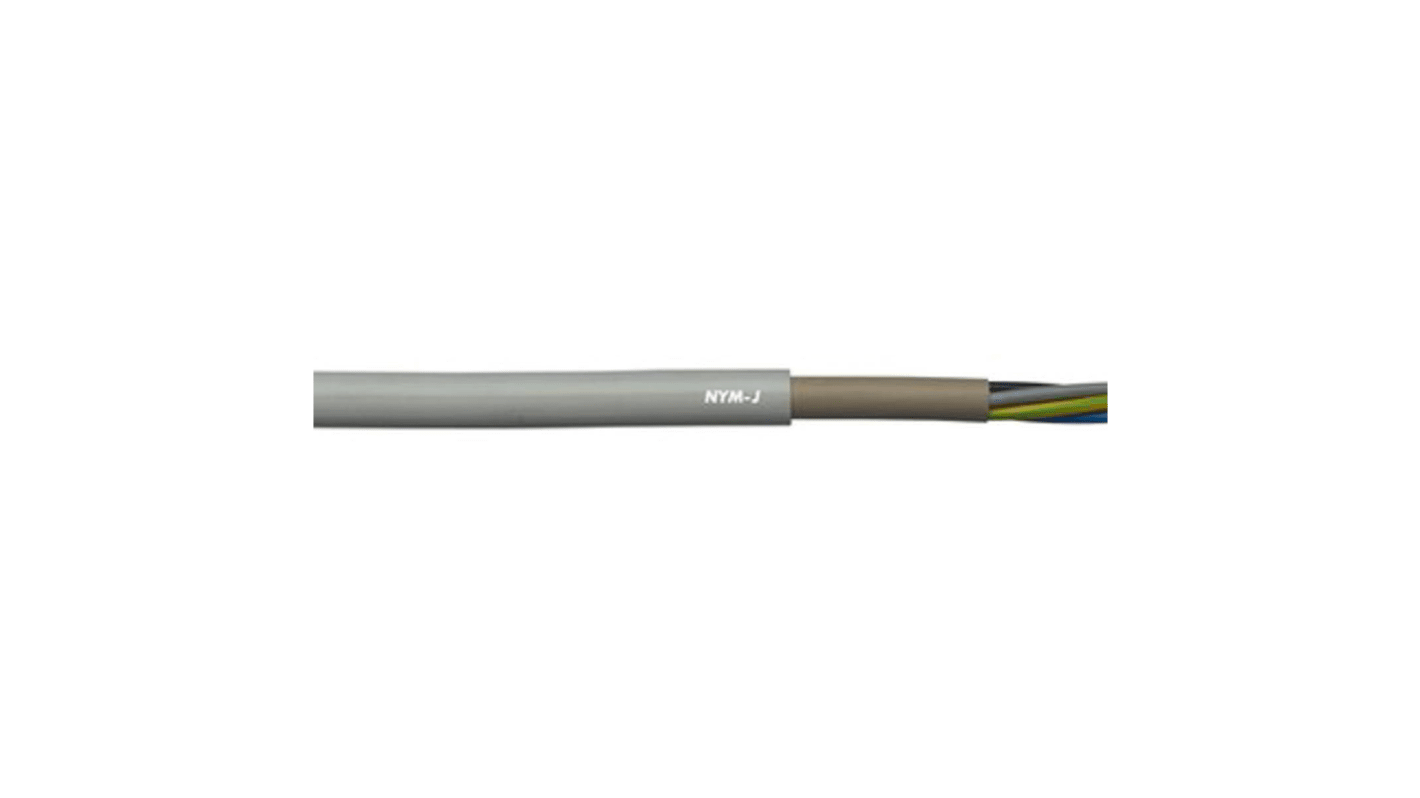

Lapp NYM-J 1.5 mm² 5 Core Power Cable, Grey PVC, 50m
- RS Stock No.:
- 515-1614
- Mfr. Part No.:
- 16000023
- Brand:
- Lapp
Subtotal (1 reel of 50 metres)*
Kr.2 383 51
(exc. VAT)
Kr.2 979 39
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- Plus 10 unit(s) shipping from 05. januar 2026
- Plus 4 unit(s) shipping from 05. januar 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | Kr. 2 383,51 | Kr. 47,67 |
*price indicative
- RS Stock No.:
- 515-1614
- Mfr. Part No.:
- 16000023
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Cross Sectional Area | 1.5 mm² | |
| Number of Cores | 5 | |
| Sheath Colour | Grey | |
| Length | 50m | |
| Current Rating | 19 A | |
| Outer Diameter | 9.9mm | |
| CPR Certification | Eca | |
| Sheath Material | PVC | |
| Voltage Rating | 500 V | |
| Conductor Strand Type | Solid | |
| Maximum Operating Temperature | +70°C | |
| Conductor Material | Copper | |
| Insulation Material | PVC | |
| Fire Behaviour | Flame Retardant | |
| Standards Met | Euroclass Eca | |
| Minimum Operating Temperature | -40°C | |
| Conductor Resistance | 12.1 Ω/km | |
| American Wire Gauge | 15 AWG | |
| Size of Strands | 1.38 mm | |
| Series | NYM-J | |
| Core Strands | 1.38 mm | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Cross Sectional Area 1.5 mm² | ||
Number of Cores 5 | ||
Sheath Colour Grey | ||
Length 50m | ||
Current Rating 19 A | ||
Outer Diameter 9.9mm | ||
CPR Certification Eca | ||
Sheath Material PVC | ||
Voltage Rating 500 V | ||
Conductor Strand Type Solid | ||
Maximum Operating Temperature +70°C | ||
Conductor Material Copper | ||
Insulation Material PVC | ||
Fire Behaviour Flame Retardant | ||
Standards Met Euroclass Eca | ||
Minimum Operating Temperature -40°C | ||
Conductor Resistance 12.1 Ω/km | ||
American Wire Gauge 15 AWG | ||
Size of Strands 1.38 mm | ||
Series NYM-J | ||
Core Strands 1.38 mm | ||
- COO (Country of Origin):
- DE
NYM-J installation cable
From Lapp, this NYM-J cable is a widely-used installation cable that is often found in domestic and commercial electrical wiring. The PVC sheathed cable is designed for use in plaster, brickwork and concrete, and is a common standard in construction and maintenance.
The cable is bare copper single core with PVC with a filling compounds over the core assembly. The PVC sheath is flame retardant and robust, allowing the cable to be used in dry, damp and wet interiors, and even outdoors if protected from direct sunlight.
The cable should not be used in direct embedding in vibrated or compressed concrete.
Features and Benefits
• Bare copper conductors
• PVC-based outer sheath
• Above, below, flush and recess routing
Applications
NYM-J cable is often used in fixed installations in domestic and commercial environments, typically when wiring electrical sockets to the mains power. It is similar to NYY-J cable which is used for the same applications, but is also suitable for outdoor use.
The cable is bare copper single core with PVC with a filling compounds over the core assembly. The PVC sheath is flame retardant and robust, allowing the cable to be used in dry, damp and wet interiors, and even outdoors if protected from direct sunlight.
The cable should not be used in direct embedding in vibrated or compressed concrete.
Features and Benefits
• Bare copper conductors
• PVC-based outer sheath
• Above, below, flush and recess routing
Applications
NYM-J cable is often used in fixed installations in domestic and commercial environments, typically when wiring electrical sockets to the mains power. It is similar to NYY-J cable which is used for the same applications, but is also suitable for outdoor use.
Standards
IEC 60332-1-2, VDE, CE
