Select all	Attribute	Value
	Brand	Pepperl + Fuchs
	Thread Size	M30
	Sensor Technology	Inductive
	Detection Range	10 mm
	Body Style	Threaded Barrel
	Digital Switching Output Type	PNP
	Output Function	NC
	Connection Type	Pre-Cabled
	Cable Length	2m
	Supply Voltage	15 → 34 V dc
	Length	35mm
	IP Rating	IP67
	Mounting Type	Flush
	Housing Material	Brass Nickel Plated
	Maximum DC Voltage	34V
	Minimum Operating Temperature	-25°C
	Switching Frequency	300 Hz
	Short Circuit Overload Protection	Yes
	Maximum Operating Temperature	+85°C
	Reverse Polarity Protection	Yes
	Switching Current	150 mA
	Shielding	Shielded
	Maximum Switching Frequency	300Hz

	Select all
	Brand Pepperl + Fuchs
	Thread Size M30
	Sensor Technology Inductive
	Detection Range 10 mm
	Body Style Threaded Barrel
	Digital Switching Output Type PNP
	Output Function NC
	Connection Type Pre-Cabled
	Cable Length 2m
	Supply Voltage 15 → 34 V dc
	Length 35mm
	IP Rating IP67
	Mounting Type Flush
	Housing Material Brass Nickel Plated
	Maximum DC Voltage 34V
	Minimum Operating Temperature -25°C
	Switching Frequency 300 Hz
	Short Circuit Overload Protection Yes
	Maximum Operating Temperature +85°C
	Reverse Polarity Protection Yes
	Switching Current 150 mA
	Shielding Shielded
	Maximum Switching Frequency 300Hz

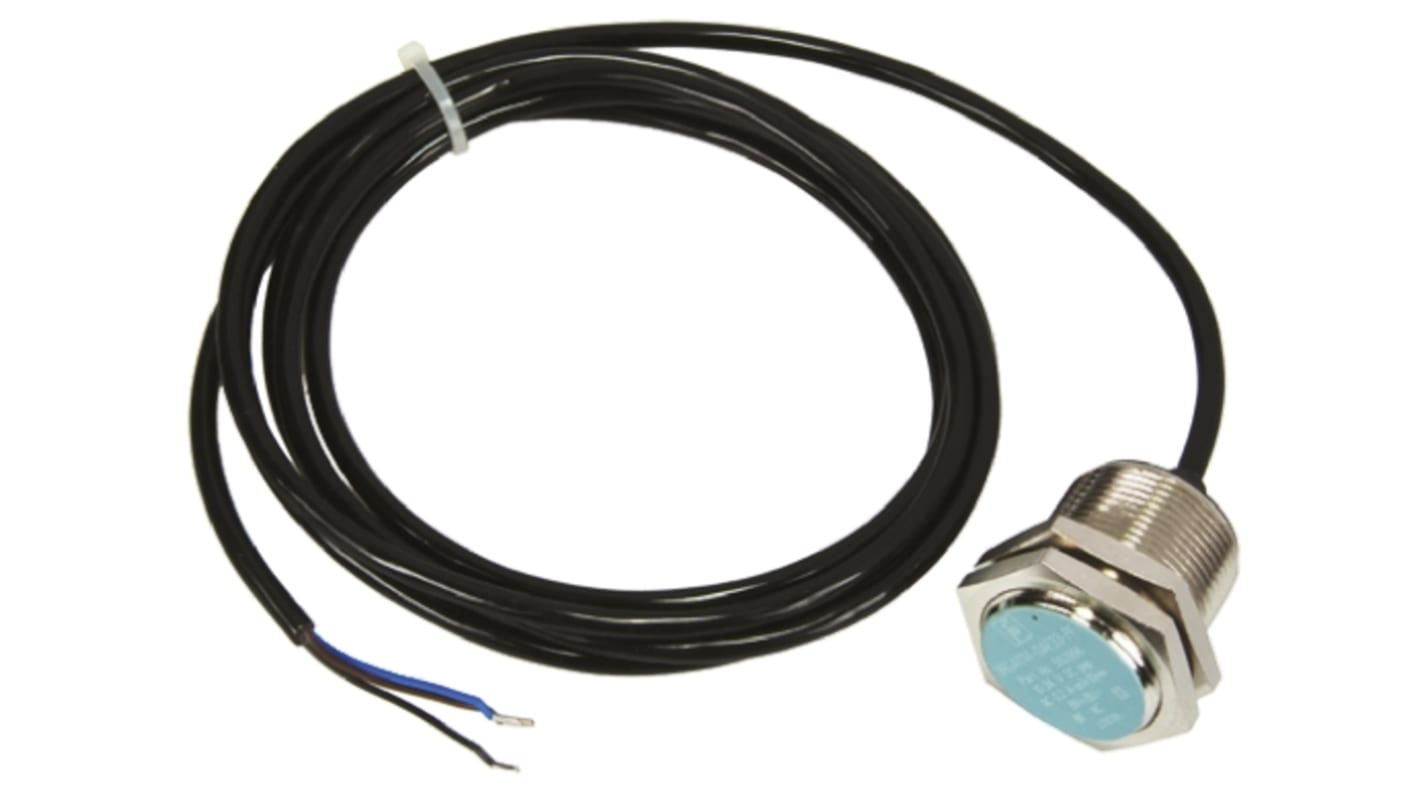

Pepperl + Fuchs Inductive Threaded Barrel Proximity Sensor, M30, 10 mm Detection, PNP NC, 15 → 34 V dc
