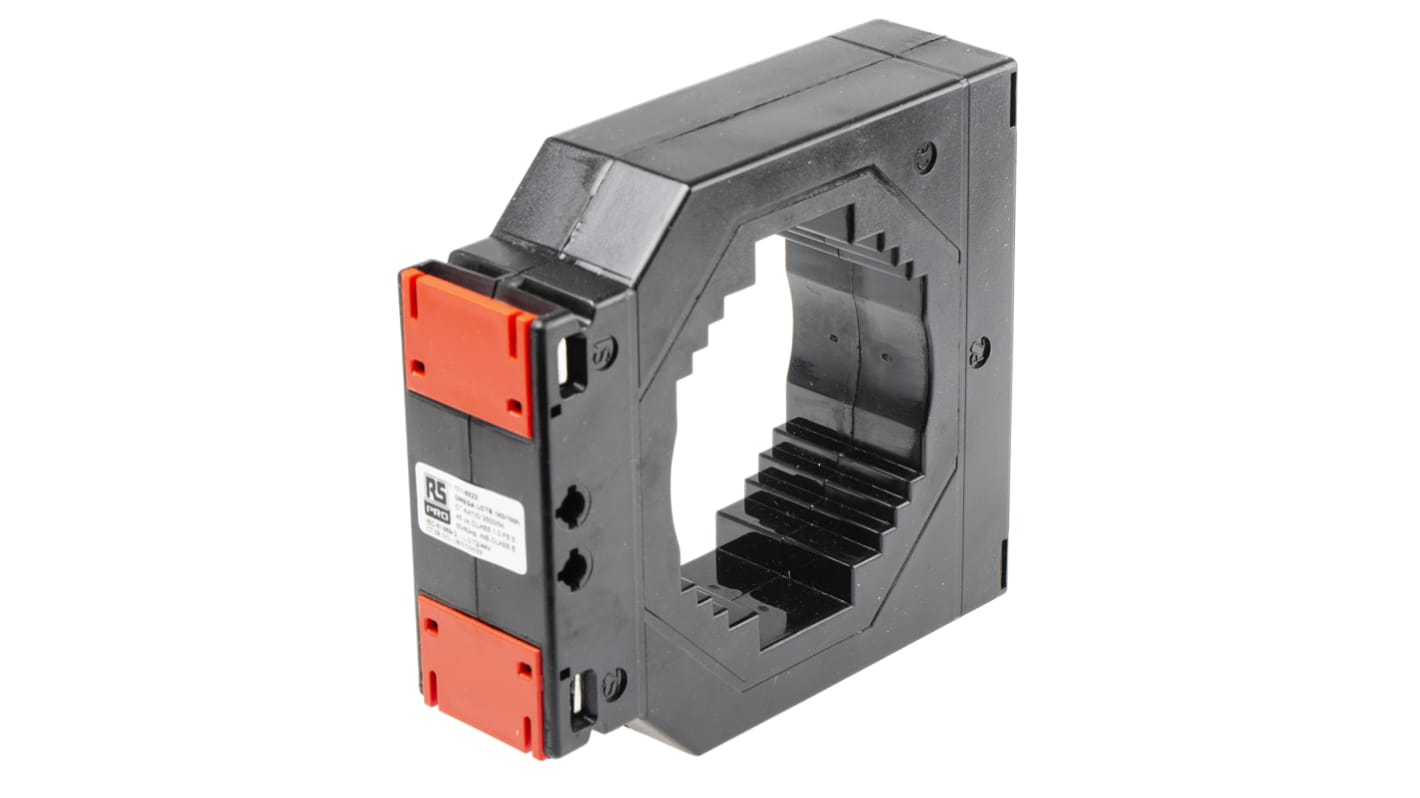

RS PRO XM24 Series Current Transformer 2500 A 100 x 30 mm Bore
- RS Stock No.:
- 171-8822
- Distrelec Article No.:
- 304-04-025
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
Kr. 542,03
(exc. VAT)
Kr. 677,54
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- 8 unit(s) ready to ship
- Plus 12 unit(s) shipping from 10 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | Kr. 542,03 |
| 5 - 9 | Kr. 520,29 |
| 10 - 24 | Kr. 498,67 |
| 25 - 49 | Kr. 476,93 |
| 50 + | Kr. 455,31 |
*price indicative
- RS Stock No.:
- 171-8822
- Distrelec Article No.:
- 304-04-025
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Current Transformer | |
| Series | XM24 | |
| Secondary Current | 5 A | |
| Terminal Type | Wire | |
| Minimum Operating Temperature | 55°C | |
| Primary Current | 2500A | |
| Maximum Operating Temperature | 55°C | |
| Width | 140 mm | |
| Length | 155mm | |
| Standards/Approvals | IEC 60044-1, IEC 61010-2, IEC 61869-1, UL 94 V-0 | |
| Depth | 45mm | |
| Maximum Operating Frequency | 60Hz | |
| Mount Type | Surface | |
| Bore Size | 100 x 30 mm | |
| Minimum Operating Frequency | 50Hz | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Current Transformer | ||
Series XM24 | ||
Secondary Current 5 A | ||
Terminal Type Wire | ||
Minimum Operating Temperature 55°C | ||
Primary Current 2500A | ||
Maximum Operating Temperature 55°C | ||
Width 140 mm | ||
Length 155mm | ||
Standards/Approvals IEC 60044-1, IEC 61010-2, IEC 61869-1, UL 94 V-0 | ||
Depth 45mm | ||
Maximum Operating Frequency 60Hz | ||
Mount Type Surface | ||
Bore Size 100 x 30 mm | ||
Minimum Operating Frequency 50Hz | ||
- COO (Country of Origin):
- IN
CT’s are square type and encapsulated with polycarbonate. These metering CT’s feature sealable terminal covers and a wide range of primary current ratings. Available in various, Bus bar sizes, case widths, and mounting options.
Comprehensive class accuracy
Cost effective moulded case current transformer
Various mounting options including wall mounting, cable mounting, bus bar mounting and DIN rail mounting
Available in 0.2 & 0.2s accuracy class
Wire sealable terminal covers
